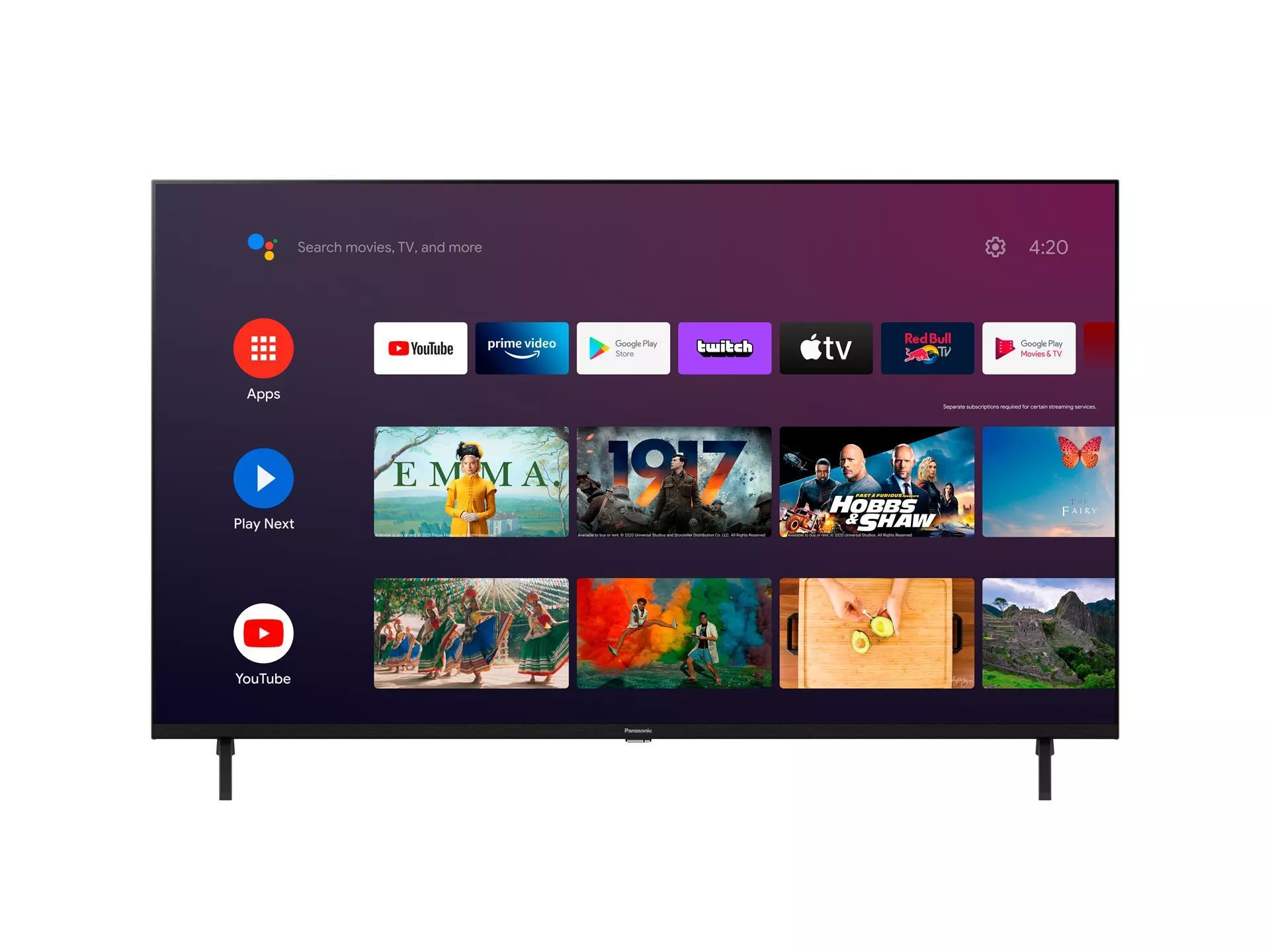

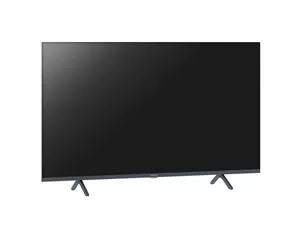

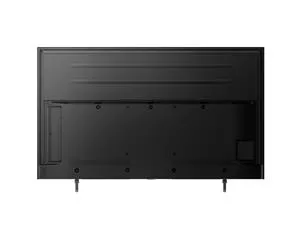

Panasonic TX-43LX810


Panel Technology4K LCD/HDR Bright Panel Plus

Resolution (W x H)4K Ultra HD/3,840 x 2,160

Motion Technology4K 1400 Hz BMR

Multi HDR Support*HDR10+ Adaptive/HDR10/HLG/DolbyVision

Dimming/ContrastLocal Dimming

Colour SpaceWide Colour Spectrum

Dolby Vision IQ-

HDR10+ AdaptiveY

Filmmaker ModeY (with intelligent sensing)

Processor/EngineHCX Processor

Auto AI for Picture-

Picture ModeDynamic/Normal/Cinema/True Cinema/FILMMAKER/Sport/Game/DolbyVision (Vivid/Bright/Dark)

isf Mode-

Calman READY-

Sound

Dolby AtmosY

SurroundSurround Sound

Speaker Output20 W (10 W x 2)

Auto AI for Sound-

Sound ModeUser/Standard/Vivid/Sports/Movie/Music/News

Smart Features*

Smart TVAndroid

my Scenery-

Google Assistant Built-inY

Works with Google AssistantY

Alexa Built-in*-

Works with Alexa-

Panasonic TV Remote 3 App (swipe & share)-

Home Network*-

IP Home Control-

In-House TV Streaming (SATIP/DVB-IP)-

Web Browser*-

Easy Mirroring/Chromecast built-inChromecast built-in

Media PlayerY

Support FormatAVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/WAV, JPEG

Gaming

Game ModeY

HDMI 2.1 VRR Support-

HDMI 2.1 HFR - 120Hz Support-

AMD Freesync Premium*-

Connectivity

Wireless LAN Built-in*Y

Bluetooth*Y

HID / HOGP (Keyboard/Mouse)A2DP (Stereo AudioOut Single)

Bluetooth Audio Link*-

Terminal

HDMI Inputs*3 (side3)

HDCPY (HDCP2.3)

HDMI Support FeatureARC (Audio Return Channel) (Input 2 ) - ALLM (Auto Low Latency Mode ) (All inputs)

HDMI Signal Power Link-

USB2 (side; USB 2.0 x 2)

Ethernet1

CI (Common Interface)1 (CI Plus, Version 1.4, ECP)

Analogue Video InputRCA phono type x 1 (side)

Component Video Input shared with Composite-

Digital Audio Output (Optical)1 (side)

Digital Audio Output (Coax)-

PC input (VGA) + PC Audio In-

Headphone Output1 (side)

Broadcasting

Digital TunerDVB-T/T2/DVB-S2/DVB-C

Analogue TunerY

Data BroadcastingHbb TV

Teletext Reception500P

USB-HDD Recording*¹²Y (w/ Pause Live TV)

Multi Window-

HDAVI Control-

Voice Guidance-

EPGY

On Screen Display Menu Languages

7 Languages*

Twin Tuner-

Visible Screen Size (diagonal)108 cm / 43 inches

Screen Resolution3,840 x 2,160

Power SupplyAC 220 - 240 V, 50/60 Hz

Ambient Sensor (CATS)Y

General

Included Accessory*¹5TV Remote

Dimensions (W x H x D) (w/o stand)965 x 566 x 83 mm

Dimensions (W x H x D) (with stand)*965 x 617 x 219 mm

Weight (w/o stand)8.5 kg

Weight (with stand)9.0 kg

Dimension Pedestal (W x D)641 x 219 mm

VESA CompatibleY

VESA Dimension (W x H)200 x 200 mm

Outer Boxed Unit (W x H x D)1,075 x 652 x 142 mm

Total Boxed Weight12.0 kg

Note*1 Features and specifications are subject to change without prior notification. Internet connection is required with smart functions.

*2 All models; Supporting HDR does not increase the peak brightness capabilities of the TV panel.

Full HD & HD models; The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR. Please check the HDCP version of HDMI inputs. Not all HDR contents are guaranteed to be enjoyed on the TV.

*3 Google, Android TV and Chromecast built-in a trademarks of Google LLC

Google Assistant is not available in certain languages and countries

Requires internet connection. Subscriptions for services may be required.

*4 Amazon, Alexa is not available in certain languages and countries. Requires internet connection. Subscriptions for services may be required. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

*5 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.

*6 The Web Browser cannot display some web pages correctly. And viewable contents by the Web Browser are subject to the following conditions;

- viewable contents may vary depend on models,

- viewable contents may differ from those for PC,

- viewable contents may be limited.

*7 ©2020 Advanced Micro Devices, Inc. All rights reserved. AMD and FreeSync and combinations thereof are trademarks of Advanced Micro Devices, Inc.

*8 In case the password of the registered device or user is known by a third party, there is a risk of unauthorized entries. Keep your password safe. Panasonic will make no warranty for the unauthorised entries.

To prevent a risk of interception, unauthorised entries and hacking, set up the proper security settings (encryption setting).

*9 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.

*10 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device.

*11 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*12 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB.

*13 Based on (EU) 2019/2021 transitional measurement method.

*14 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

*15 Not all the accessories are listed here.

*16 Dimension with recommended pedestal style.

*17 Supporting HSP standardized by CTA-2072 (HDR Still Photo Interface)

*18 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)).

*19 27 Languages (English / German / Italian / Spanish / French / Danish /Finnish / Swedish / Dutch / Hungarian / Czech / Romanian / Bulgarian / Polish / Norwegian / Estonian / Latvian / Lithuanian / Portuguese / Turkish / Greek / Croatian / Slovak / Slovenian / Serbian / Russian / Macedonian)
