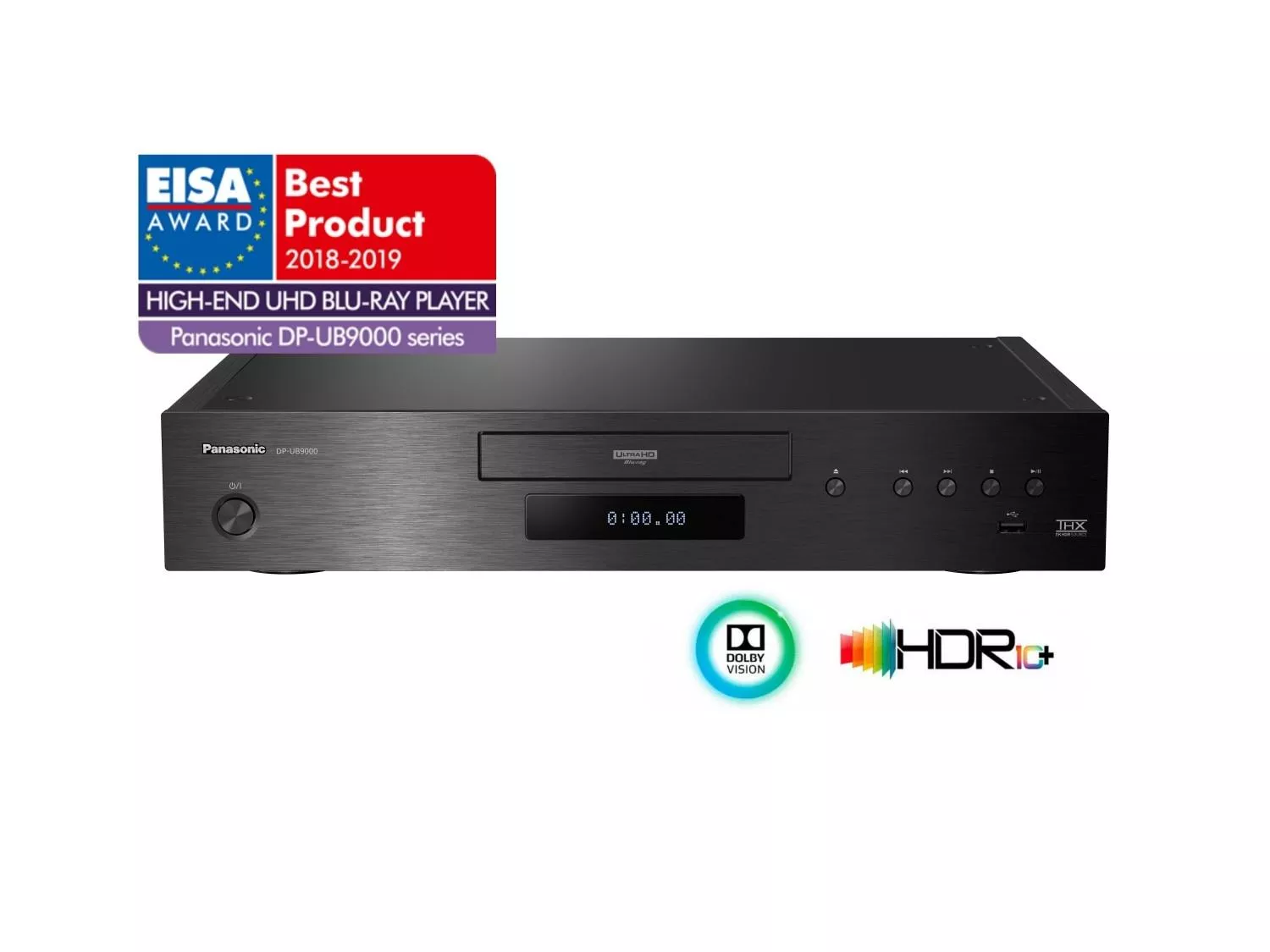

Panasonic DP-UB9000

BD-ROM - Ultra HD Blu-ray/ FULL HD 3D/ BD-Videoyes

BD-RE/ BD-RE DL (Ver.3) - BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPOyes

BD-R (Ver.1.3) / BD-R DL (Ver.2) - BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPOyes

DVD - DVD-Videoyes

DVD-R*1/ DVD-R DL*1/ DVD-RW*1

AVCHD/ MKVyes/ yes* (*DVD-R/ DVD-R DL)

DVD-Video/ DVD Video Recordingyes

FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFFyes (DVD-R/ DVD-R DL)

JPEG/ MPOyes (DVD-R/ DVD-R DL)

+R*1/ +R DL*1/ +RW*1 - Video/ AVCHDyes

CD, CD-R/ -RW

CD-DA/ DTS-CDyes

MKVyes (CD-R/ -RW)

FLAC/ WAV/ ALAC/ WMA/ AAC/ MP3/ AIFFyes (CD-R/ -RW)

JPEG/ MPOyes (CD-R/ -RW)

AUDIO SYSTEM

Dolby Digital/ TrueHDyes (Decode and Bitstream Output*2)

Dolby Digital Plusyes (Decode and Bitstream Output*2)

DTS-HD Master Audio/ DTS-HD High Resolution Audioyes (Decode and Bitstream Output*2)

FLACyes (Max. 192 kHz/ 24 bit)

Dolby Atmos/ DTS-Xyes (Bitstream Output*2)

WAVyes (Max. 384 kHz/ 32 bit)

ALACyes (Max. 96 kHz/ 32 bit (7.1ch), 176.4/192 kHz/ 32 bit (5.1ch))

DSD (DFF, DSF)yes (2.8 MHz (2ch/ 5.1ch), 5.6 MHz (2ch/ 5.1ch), 11.2 MHz (2ch))

AIFFyes (Max. 384 kHz/ 32 bit (2ch))

USB

Front1 (USB 2.0 High Speed)

Rear1 (USB 3.0 Super Speed)

Playback MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC)yes

JPEG/ MPOyes

FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3yes (Gapless PlaybackFLAC/ WAV/ AIFF/ DSD(DFF))

MPEG-2/ AVCHD/ AVCHD 3Dyes

HIGH QUALITY PICTURE

HCX Processor for Ultra HD Blu-rayyes

HDR HDR10+yes

Dolby Visionyes

Hybrid Log Gamma(HLG)yes

HDR Optimiseryes

4K Up-scaling 60p/50p/ 444 (HDMI2.0)yes*4*5

24p/ 25pyes*4*5

4K Direct Chroma Up-scalingyes*4

4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4)yes

4K VODyes*7

Picture Type Presets(Normal/ Cinema/ Fine Cinema/ Retro Cinema/ Animation/ Live)*8

Block/ Randam/ Mosquito Noise Reductionyes

Video on Demand in HD Qualityyes

Ultra HD Premiumyes

THX Certifiedyes

Deep Colouryes

x.v.Colour yes*9

HIGH QUALITY SOUND

TWIN HDMIyes

Pure Audio on HDMI (HDMI Low Clock Jitter Process)yes

High Quality Network Audio Playback (DLNA)yes*10 (FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3)

High Clarity Sound Premiumyes

Digital Tube Soundyes (Up to 192 kHz/ 32 bit)

Surround Re-Masteryes*11 (Up to 192 kHz/ 32 bit)

Audio D/A Converteryes

Insulatoryes

SMART FEATURE

Viewing Experience Controlled via Voice(Google Assitant/ Amazon Alexa)yes

Unit Displayyes (Dot Matrix)

Remote Controlyes

Subtitle Position/Brightness Adjustmentyes

HDAVI Control 5 (VIERA Link)yes

Internet Appsyes*13

Mirroring with Smartphone/Tabletyes*12

Web Browseryes

Wireless LAN Systemyes (Built-in) IEEE802.11 a/b/g/n/ac

External HDD Playbackyes*14

Network Drive Accessyes

BD-Live?yes*15

Network Contents Playback (Client & Renderer)yes*10

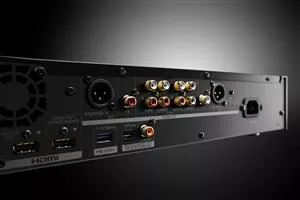

TERMINAL

HDMI Outputyes (2)

Optical Outputyes

Coaxial Outputyes

Analogue Audio LR Outputyes (XLR Balanced/ Gold Plated)

Analogue Audio 7.1ch Outputyes (Gold Plated)

LAN (Ethernet) Terminalyes (for Ultra HD Blu-ray, DLNA*10, BD-LiveTM*15, Internet Apps*13 and Firmware Update)

Video System PAL/ NTSC

Dimensions (W x H x D)430 x 81 x 300 mm*17

Weight7.8 kg

NOTE*1Discs recorded and finalized on recording devices.

NOTE*2HDMI connections and compatible equipment (e.g. AV Receiver) required.

NOTE*3Enabled by software update

NOTE*4For 4K Up-scaling playback a TV with same resolution is required.

NOTE*5For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required.

NOTE*6MP4(4K/25p,30p) bit rate up to 100 Mbps/resolution up to 3840x2160.

NOTE*7Some network content services may not be available in your country.

NOTE*8Ultra HD Blu-ray and Photo (JPG/ MPO) are not supported.

NOTE*9This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required.

NOTE*10File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.

NOTE*11CD sampling is done at 176.4/88.2 kHz.

NOTE*12A device that supports the Mirroring function and AndroidTM ver. 4.2 or higher is required.

NOTE*13Requires broadband Internet service.

NOTE*14The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives.

NOTE*15To enjoy content, you will need to insert a USB (1GB or more of free space/ sold separately). Requires broadband Internet service.

NOTE*16The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal.

NOTE*17Excluding the projecting parts.

NOTESpecifications are subject to change without notice. All numbers given here are approximate.
