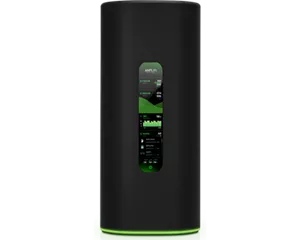

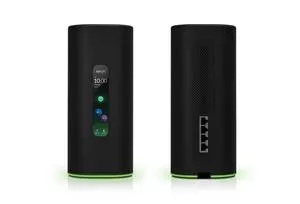

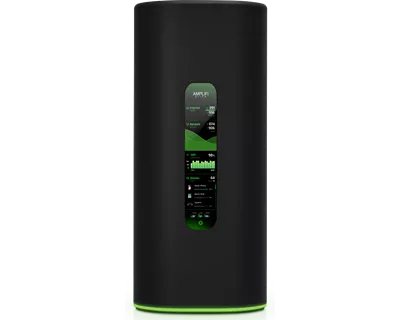

Amplifi Alien Router
Beskrivelse
AmpliFi Alien is a powerful and secure router with a single Gigabit Internet interface and internal power supply. Each Alien router has an integrated LAN switch with 4 Gigabit Ethernet ports. Take Gigabit Ethernet into any room without pulling on wires. Use Wi-Fi 6 for wireless connection and LAN ports for local wired connection.
The pulsating touch screen shows network status and provides direct controls. For your convenience, set the display and the green LED ring turns off automatically.
AmpliFi Alien is optimized to give your home network the highest possible performance no matter how many client devices are connected at one time. With the help of MU-MIMO and OFDMA for communication over twelve Wi-Fi 6-room streams, Alien eliminates dead spots and increases the total home network capacity by four times.
Antenna
High-performance antenna matrix
Processor
2.2 GHz 64-bit quad-core CPU
Wi-Fi 6
5 GHz and 2.4 GHz radio
MECHANICAL
Dimensions 110 x 110 x 250 mm
(4.33 x 4.33 x 9.84")
Weight 1.2 kg
(2.65 lb)
Enclosure Material Polycarbonate
HARDWARE
Processor Quad-Core® Cortex® A53 at 2 Ghz
Memory Information 1 GB
Management Interface AmpliFi Wi-Fi App
Networking Interface (1) 10/100/1000 Mbps RJ45 Ethernet WAN
(4) 10/100/1000 Mbps RJ45 Ethernet LAN
Max. Power Consumption 35W
ESD/EMP Protection Air/Contact ± 24kV
Power Method Universal AC Input 100-240VAC, 1A Max., 50/60 Hz
Power Supply 240VAC, Power Adapter (Included)
Button Factory Reset
Display 4.7" Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Color
Haptics Yes
Antenna Internal Dual-Band Metal Stamp with 12 Polarity
Antenna Gain
2.4 GHz
5 Ghz
3 dBi
6 dBi
Max. TX Power
2.4 GHz
5 Ghz
20 dBm
36 dBm
MIMO
2.4 GHz
5 Ghz
4 x 4
8 x 8
Speeds
2.4 GHz
5 Ghz
1148 Mbps
4800 Mbps
LED Green Ring
Operating Temperature -10 to 45° C
(14 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
SOFTWARE
Wi-Fi Standards Up to Wi-Fi 6
Wi-Fi Functions MU-MIMO, OFDMA, Tx-Beamforming
Power Save Yes
Wireless Security WPA2
VLAN Yes
Advanced QoS Yes
Guest Traffic Isolation Yes
Concurrent Clients Yes
Supported Data Rates 802.11a 54 Mbps
802.11b 11 Mbps
802.11g 54 Mbps
802.11n 600 Mbps + 600 Mbps
802.11ac 1733 Mbps + 800 Mbps
802.11ax (Backbone) 4800 Mpbs Router-Mesh Connection
802.11ax (Available to Clients) 4800 Mbps + 1148 Mbps
Operating Frequency*
2.4 GHz
5 Ghz
2412 - 2472 MHz
5150 - 5875 Mhz
